Ferramentas portáteis FNIRSI DSO-510 DSO-153 DSO-152

R$ 209,90

pagamento por Pix, aprovado na hora

Envio do Brasil · chega em 2 a 10 diasRastreio enviado por e-mail assim que o pedido sair.
Sem surpresaNada a pagar na entrega. O frete, grátis para boa parte do Brasil, é confirmado pelo seu CEP antes do pagamento.
7 dias para desistirDireito de arrependimento garantido. Como funciona

Detalhes do produto

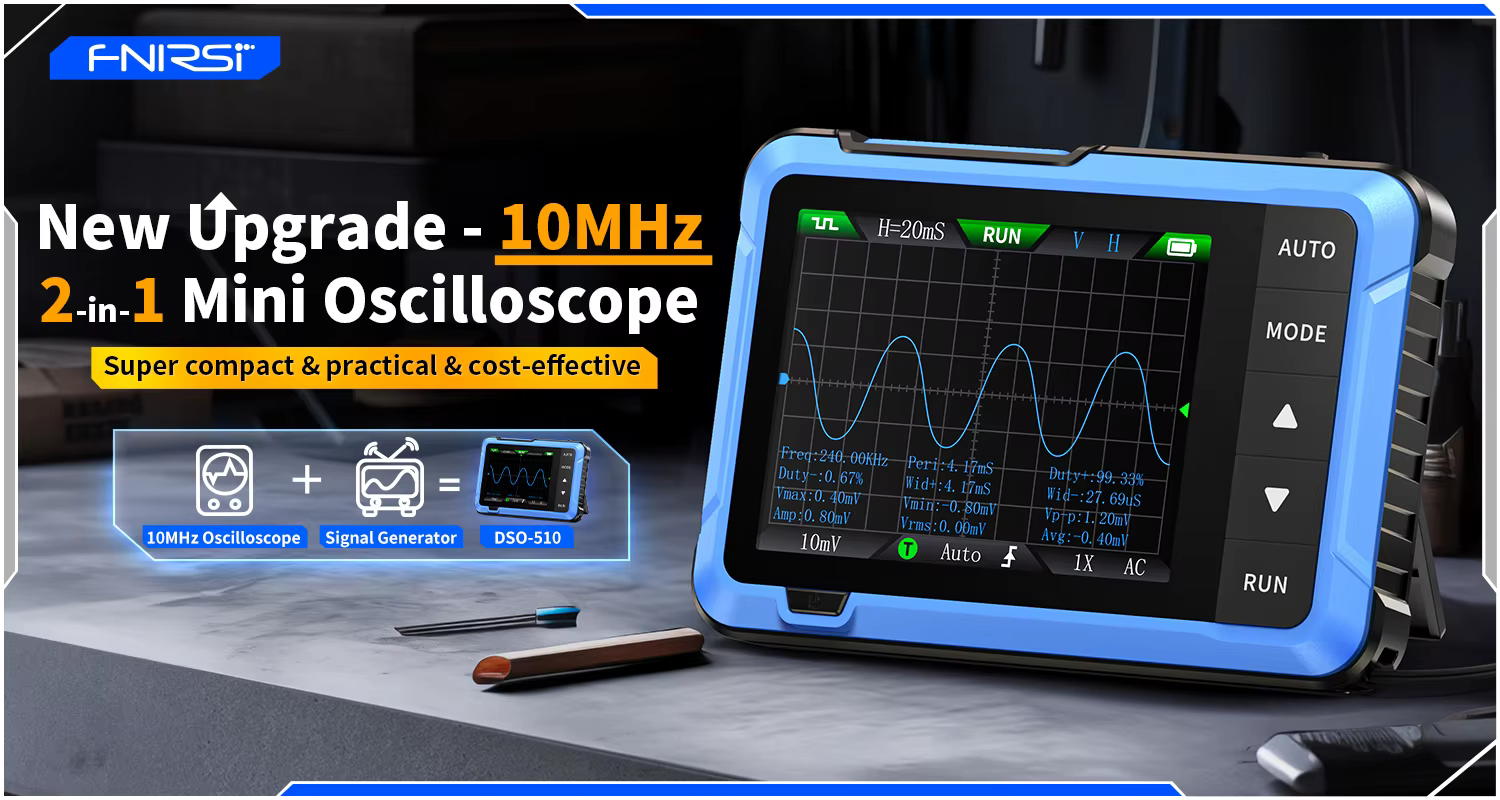

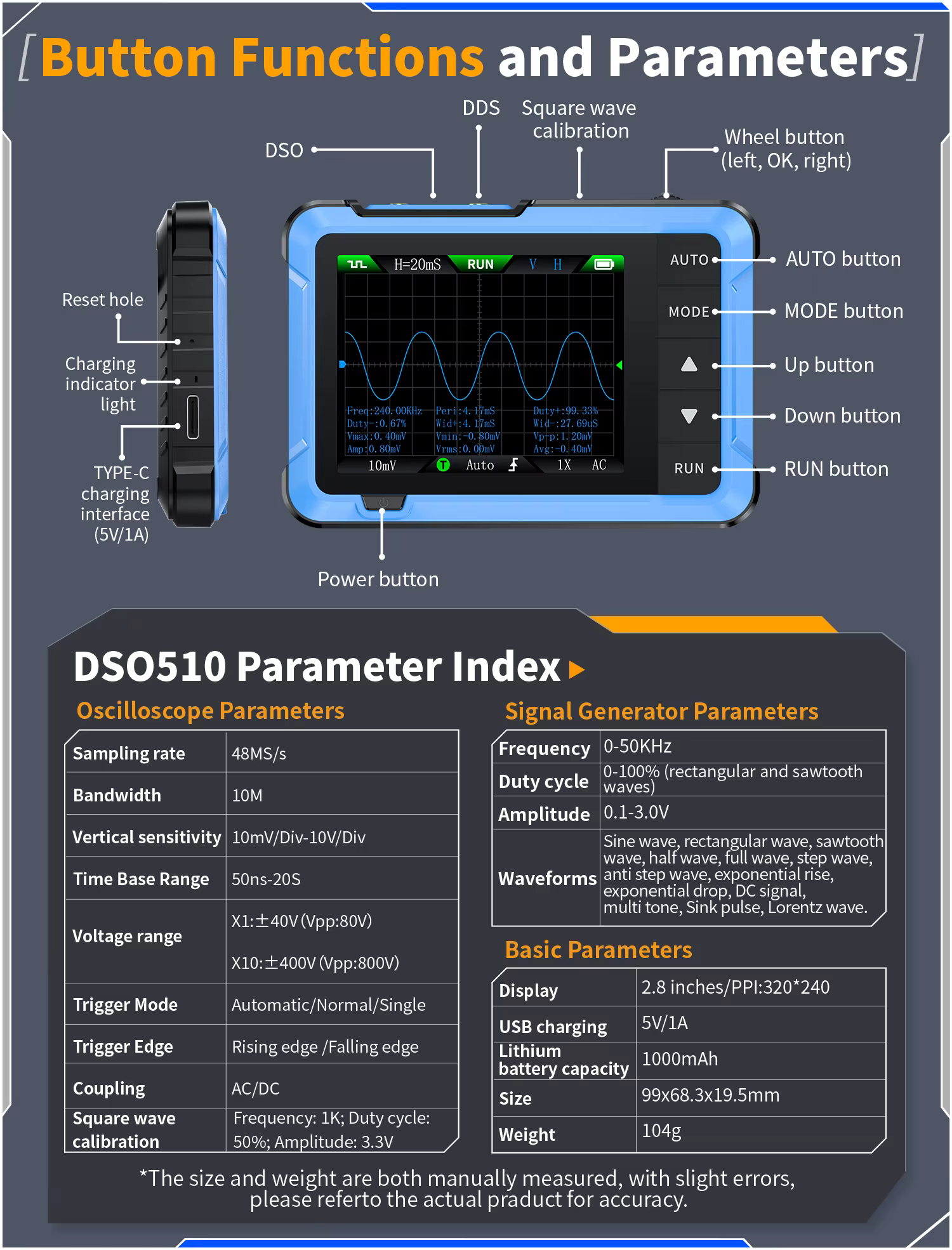

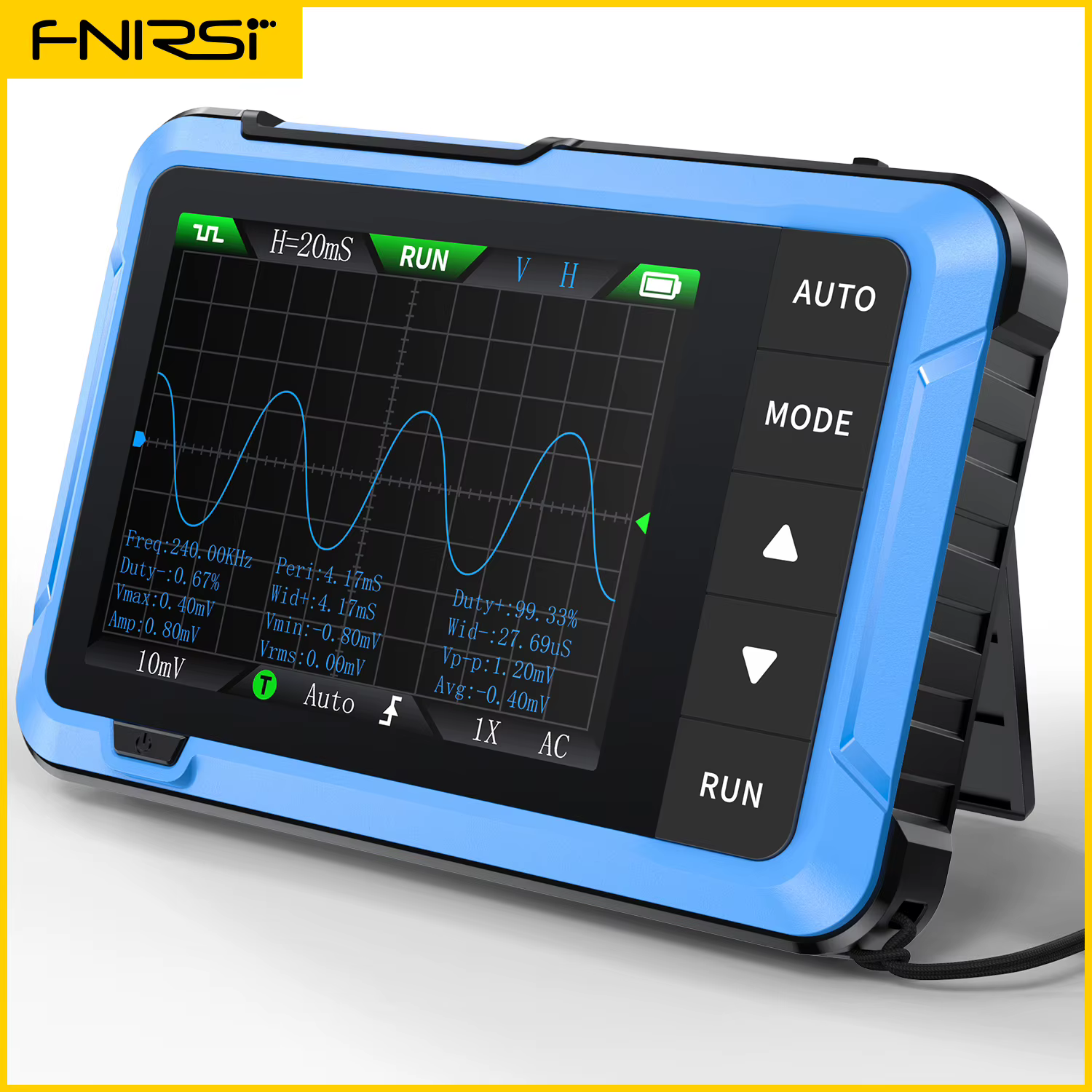

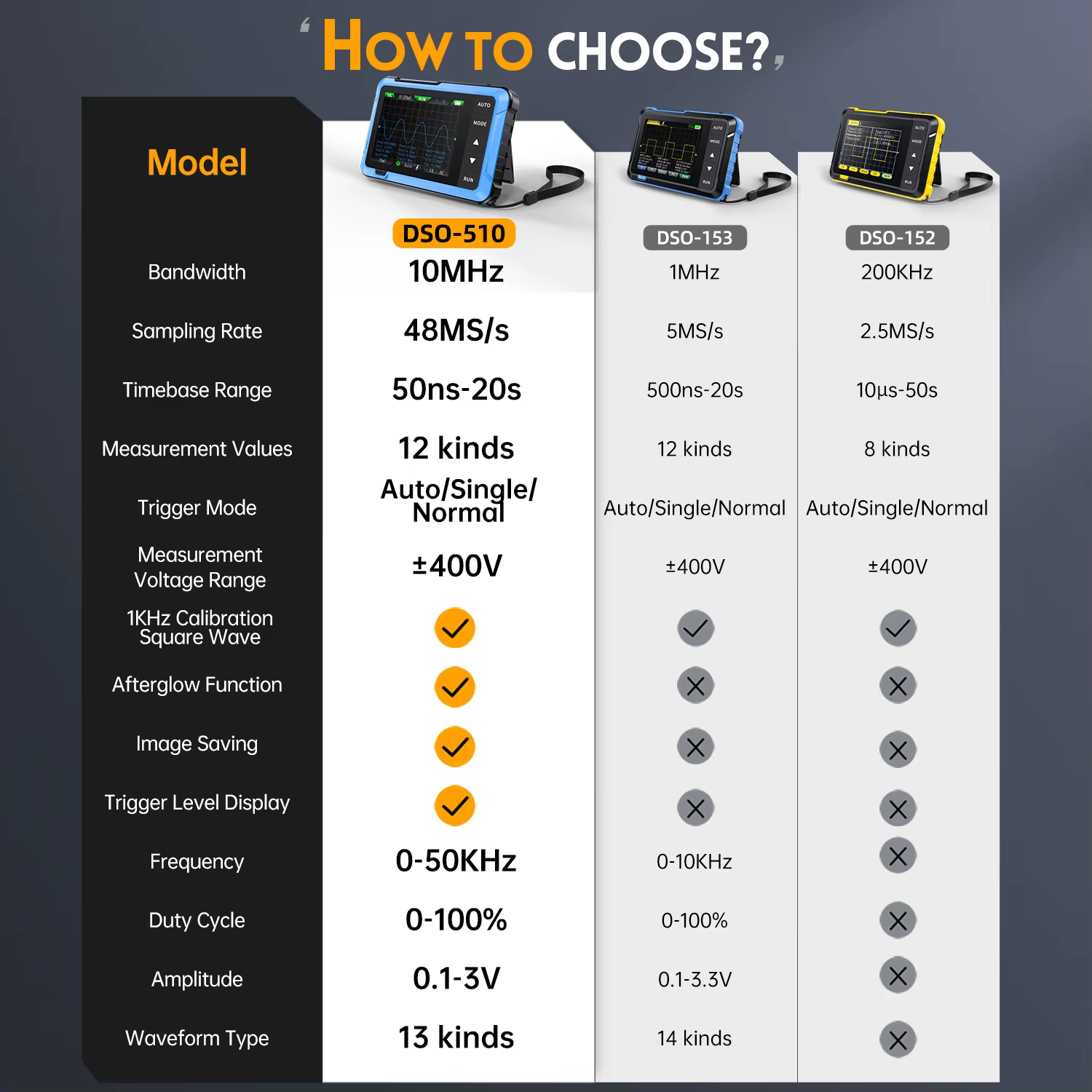

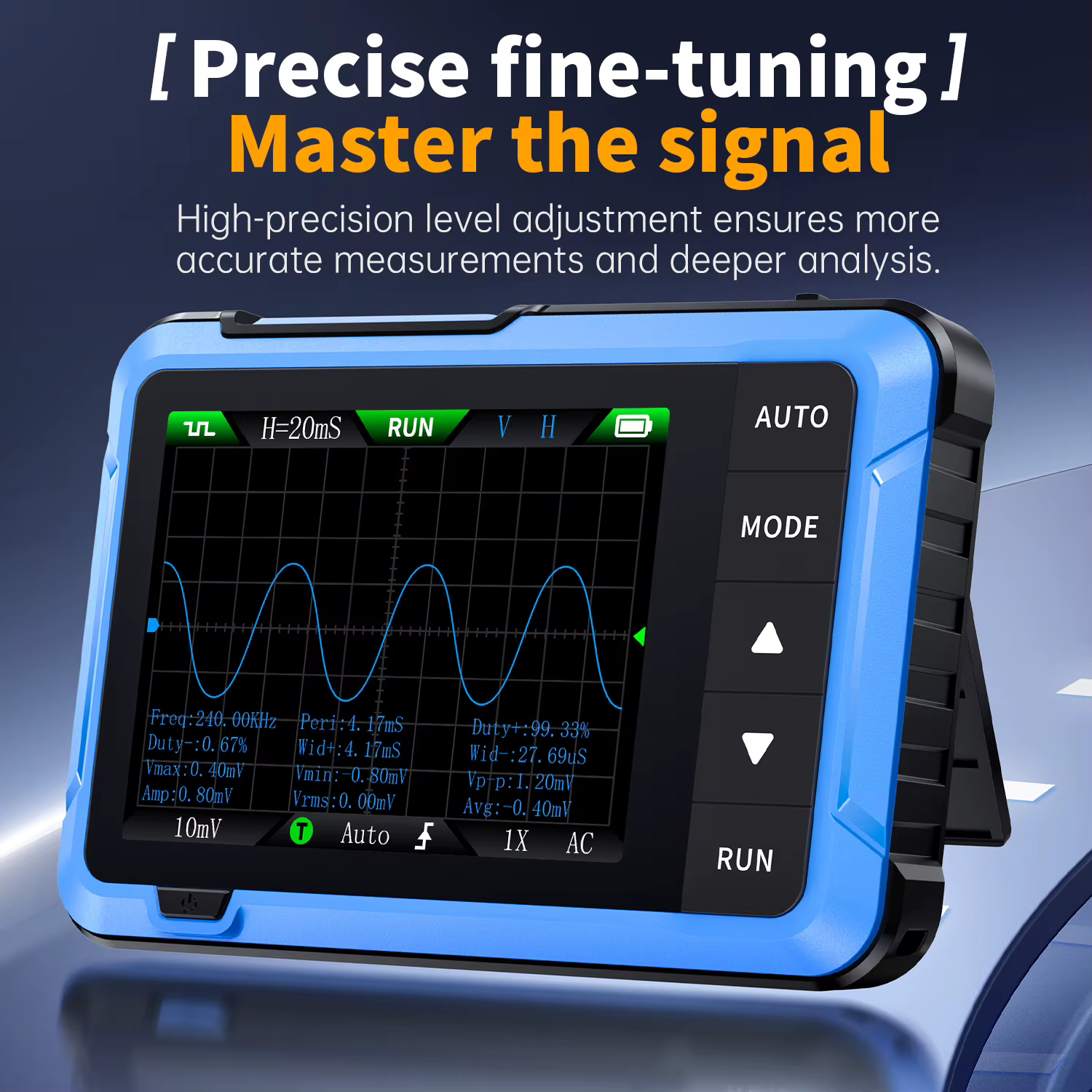

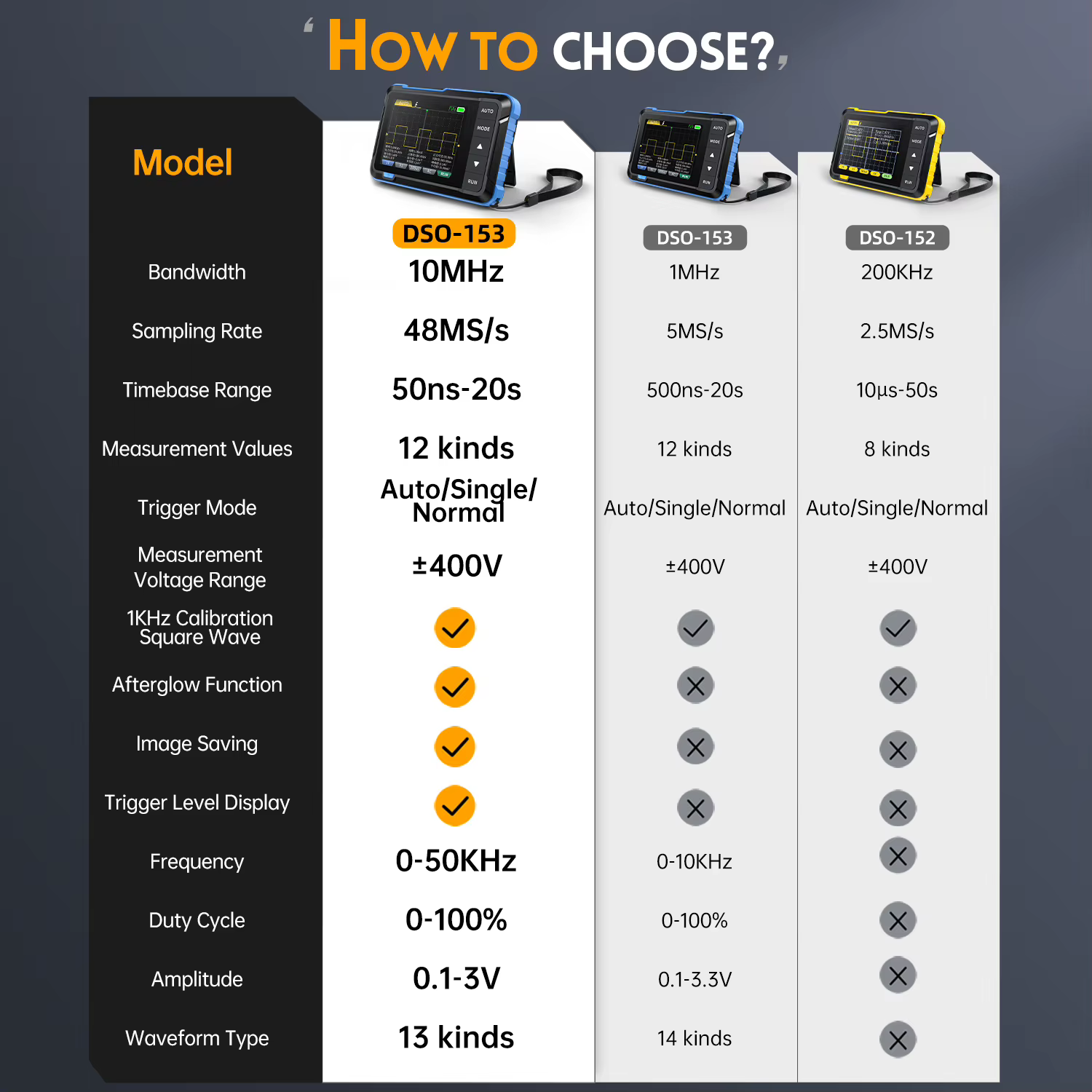

DSO510 2 IN 1 —— 10MHz Bandwidth

Channel：1

Sampling rate：48MSa/s

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）

Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way）

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

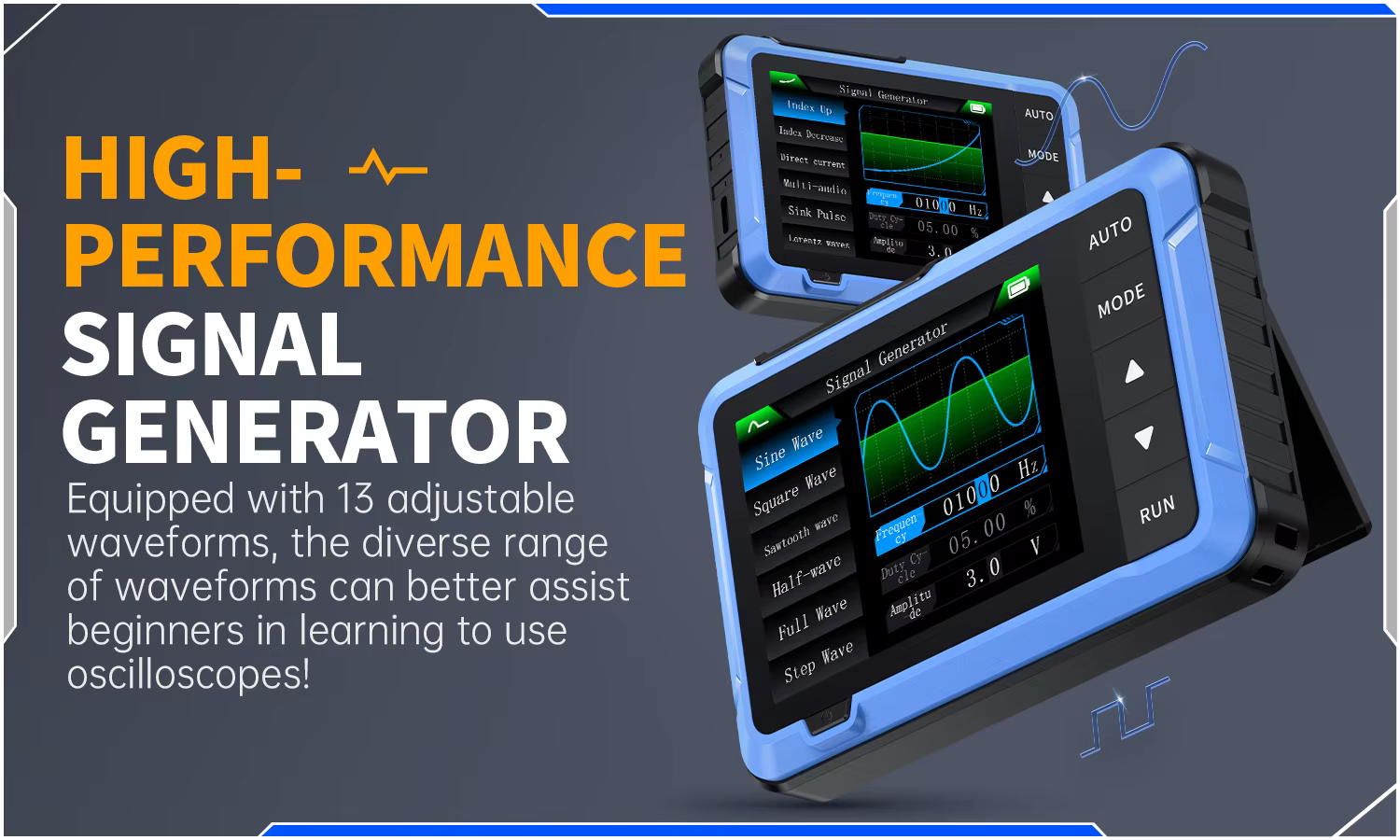

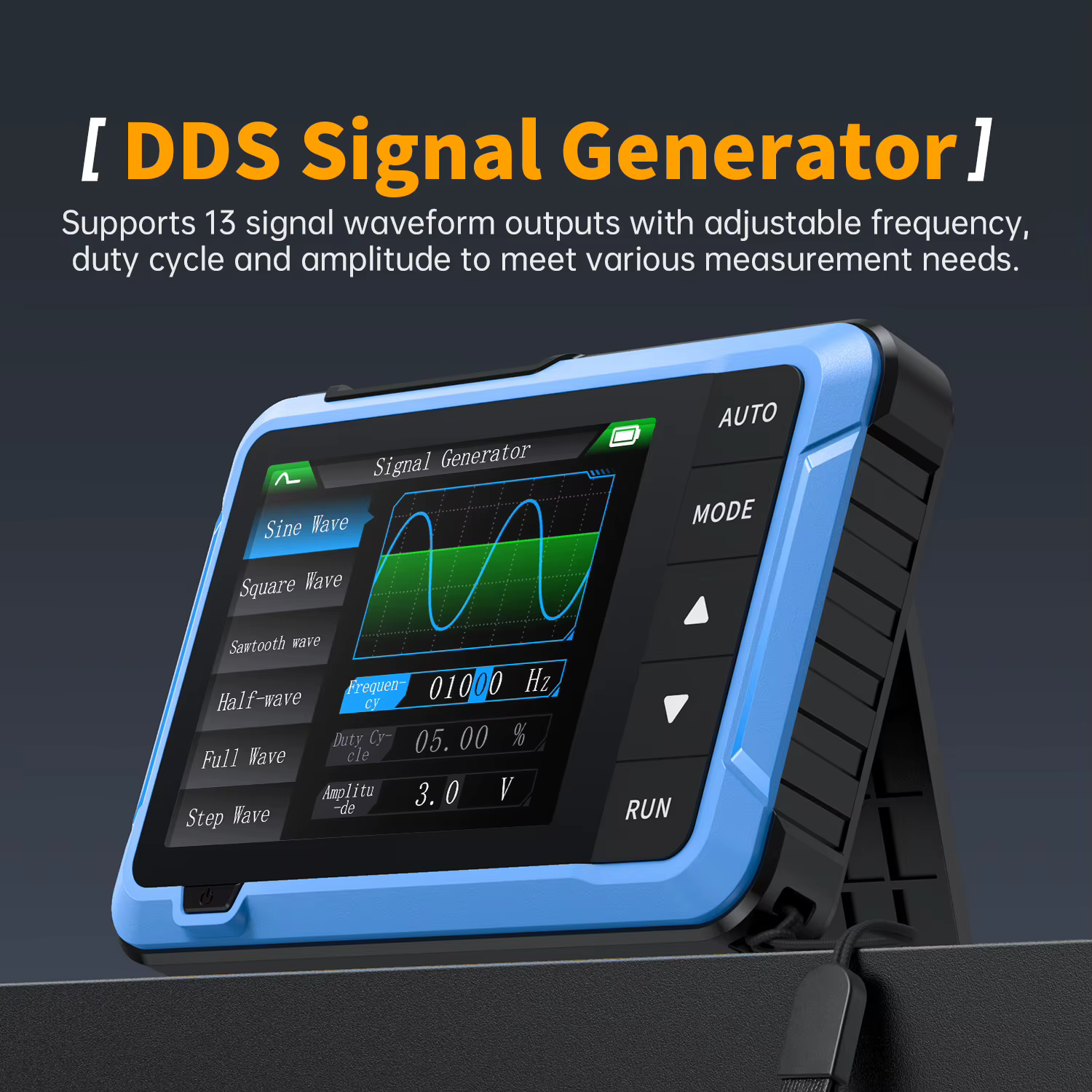

* Signal Source*

Frequency：0-50KHz

Duty cycle：0-100% (rectangular and sawtooth waves)

Amplitude：0.1-3.0V

Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

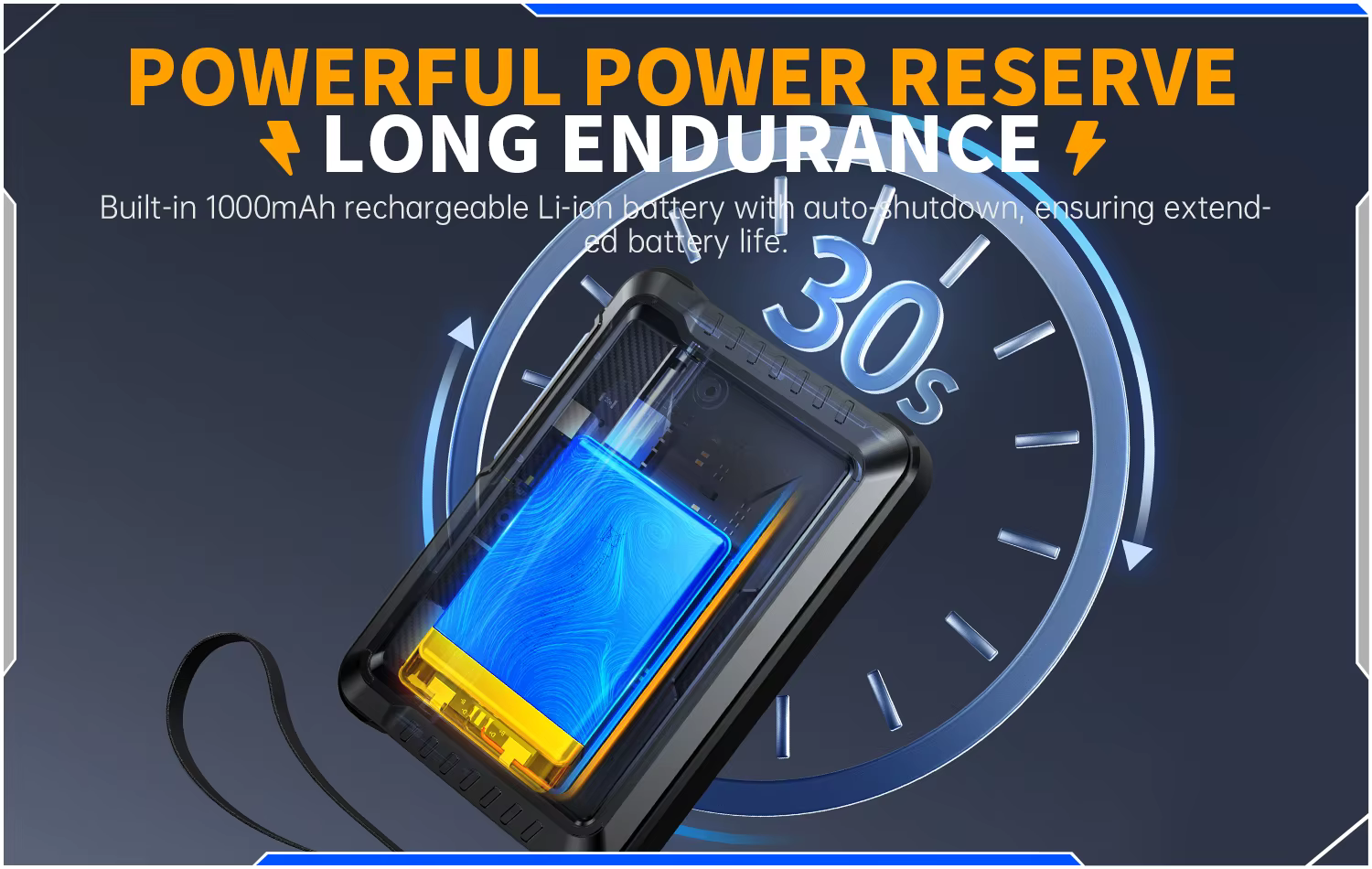

Lithium battery capacity：1000mAh

Size：99x68.3x19.5mm

Weight：104g

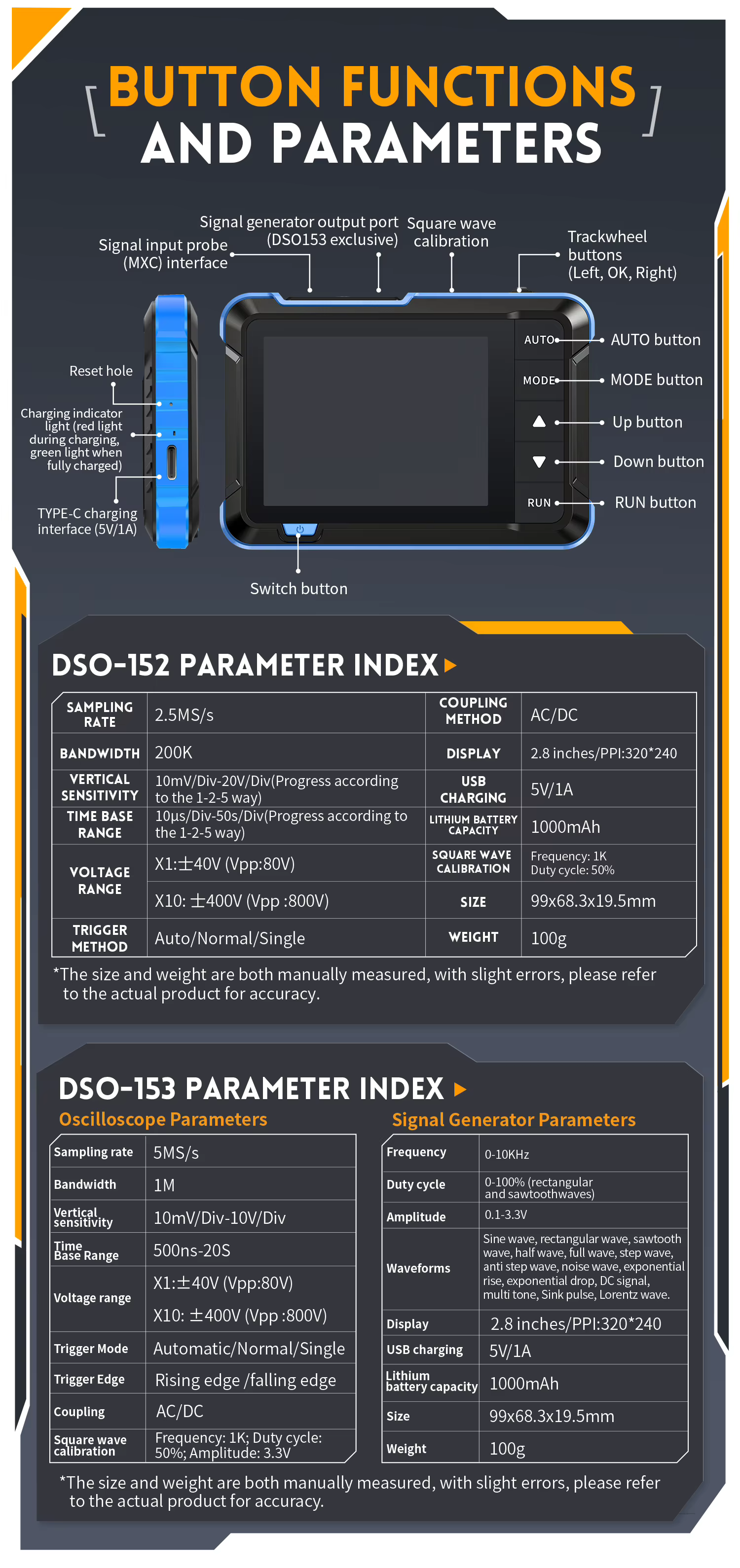

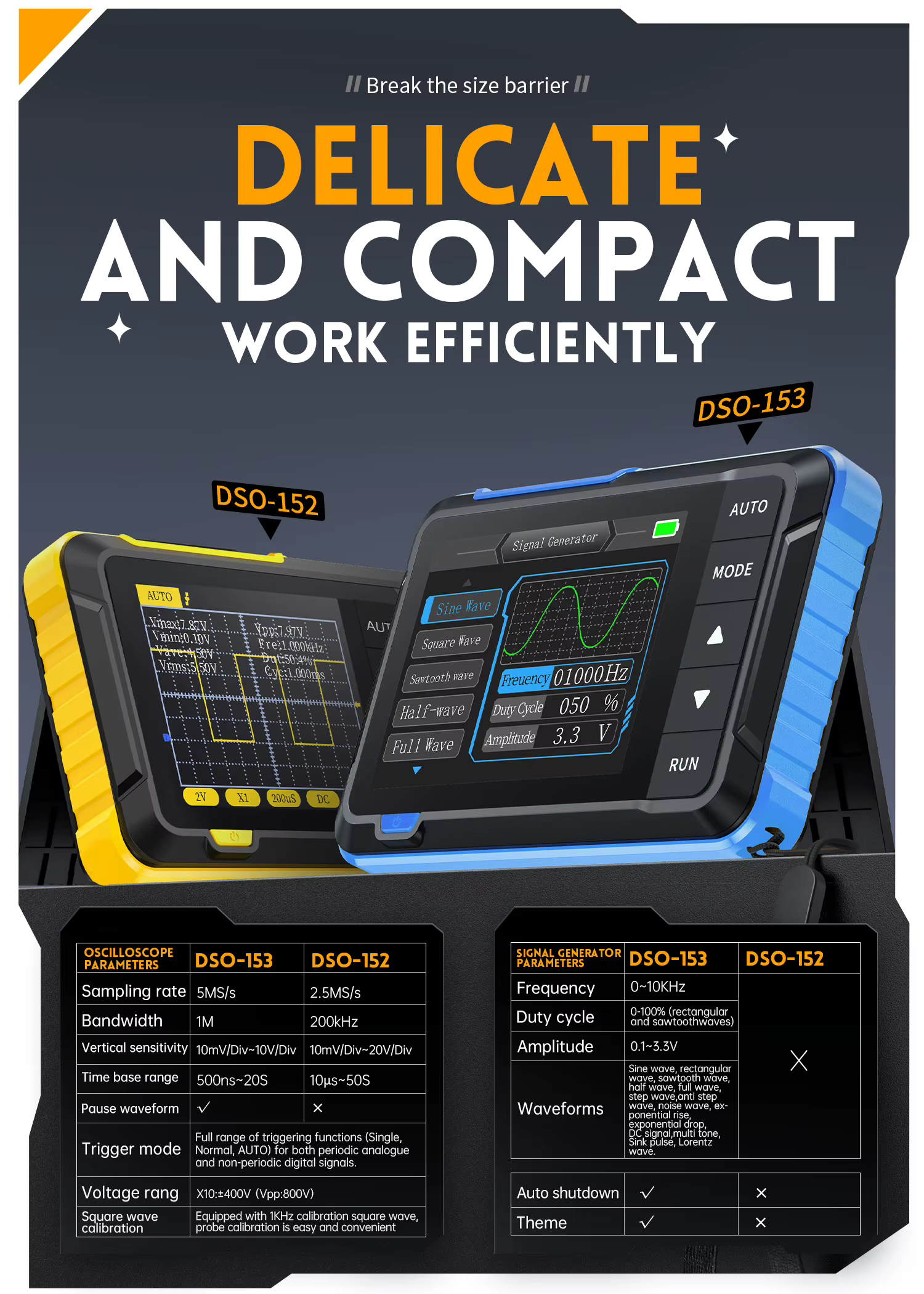

DSO153 2 IN 1—— 1MHz Bandwidth

Channel：1

Sampling rate：5MSa/s

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）

Time base range：500ns/Div-20s/Div（Progress according to the 1-2-5 way）

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

* Signal Source*

Frequency：0-10KHz

Duty cycle：0-100% (rectangular and sawtooth waves)

Amplitude：0.1-3.3V

Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal,

multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Size：99x68.3x19.5mm

Weight：100g

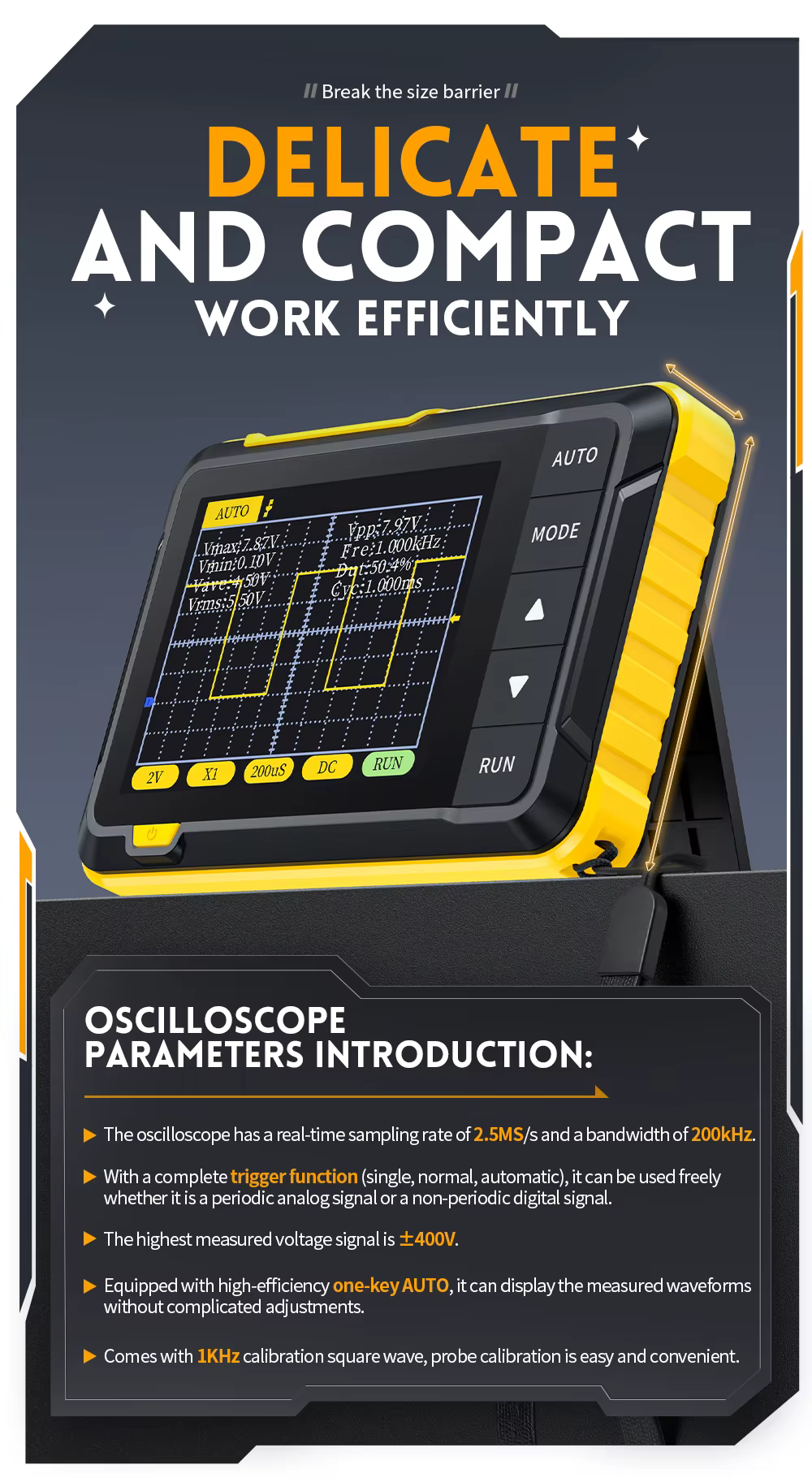

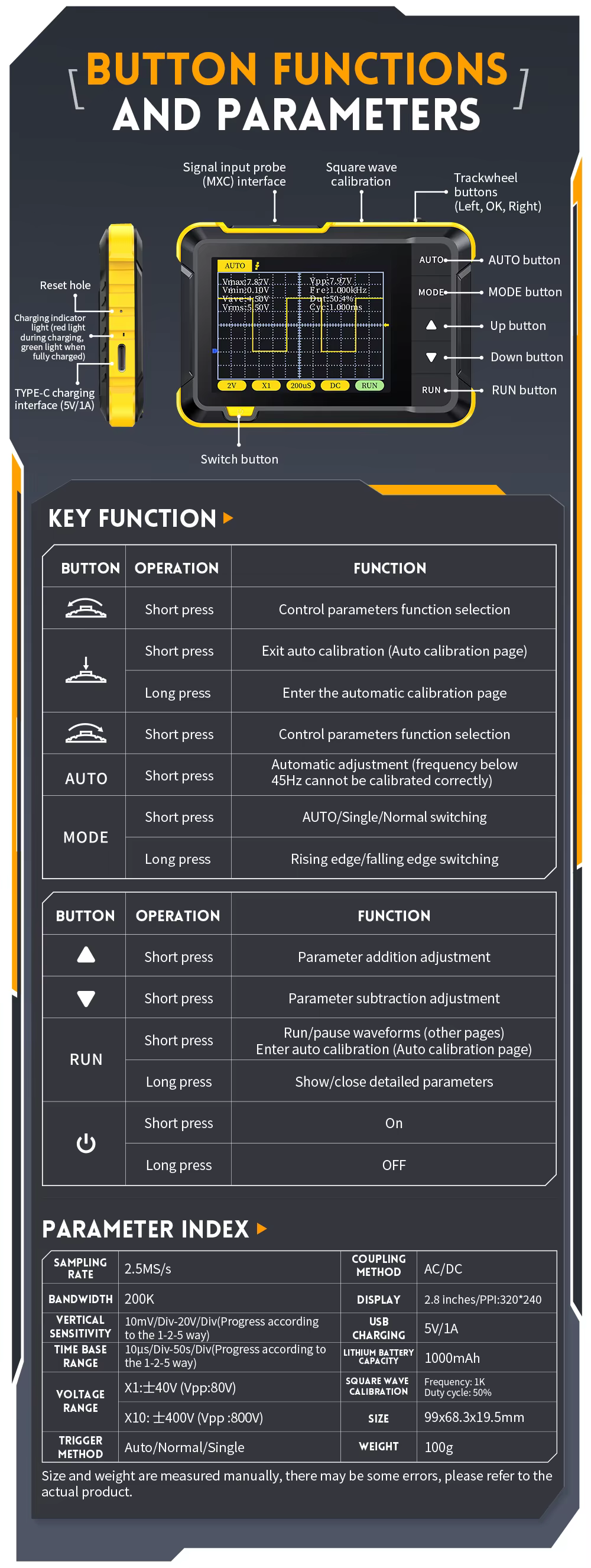

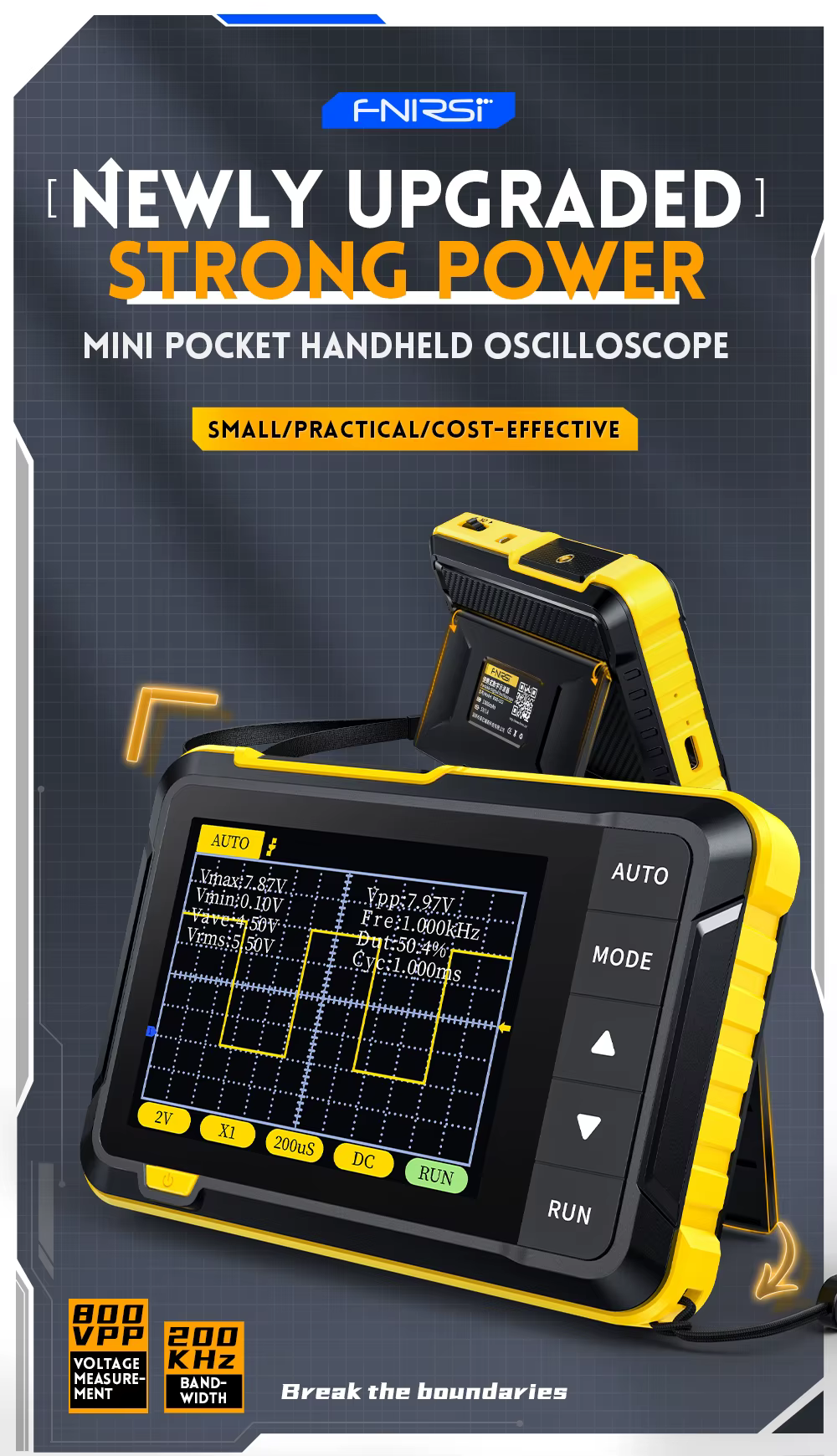

DSO152 —— 200K Bandwidth

Channel：1

Sampling rate：2.5MS/s

Vertical sensitivity：10mV/Div-20V/Div(Progress according to the 1-2-5 way)

Time base range：10μs/Div-50s/Div(Progress according to the 1-2-5 way)

Voltage range：X1:40V (Vpp:80V) X10: 400V (Vpp :800V)

Trigger method：Auto/Normal/Single

Coupling method：AC/DC

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Square wave calibration：Frequency: 1K Duty cycle: 50%

Size：99x68.3x19.5mm

Weight：100g

DSO510

NO.1 (Option)

DSO510 Host device *1

P6100 High Voltage Probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1

DSO153

NO.1 (Standard)

DSO153 Host device *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1

NO.2 (Option)

DSO 153 Host device *1

P6100 High Voltage Probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1

DSO152

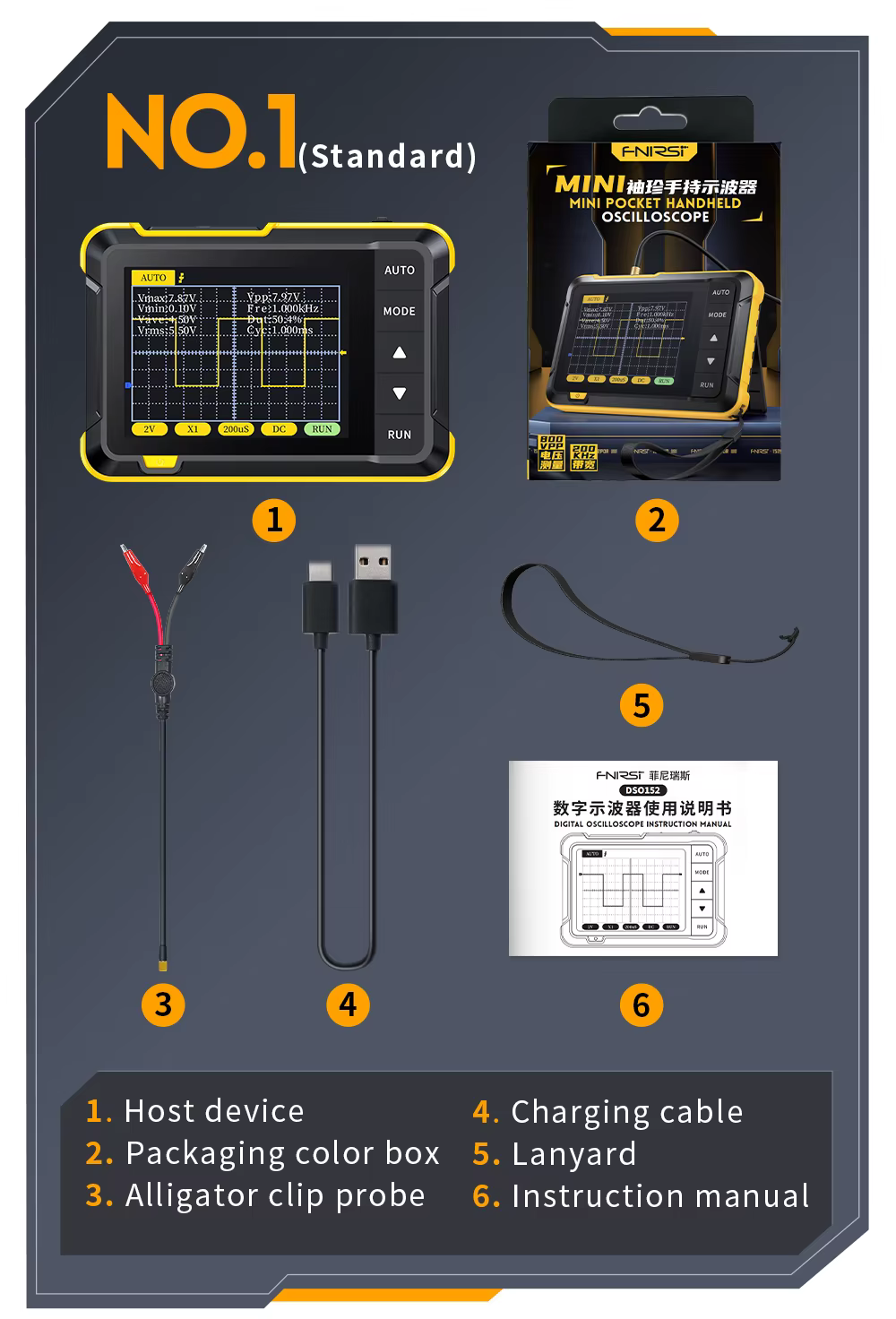

NO.1 (Standard)

DSO152 Host device *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1

NO.2 (Option)

DSO 152 Host device *1

P6100 High Voltage Probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1
