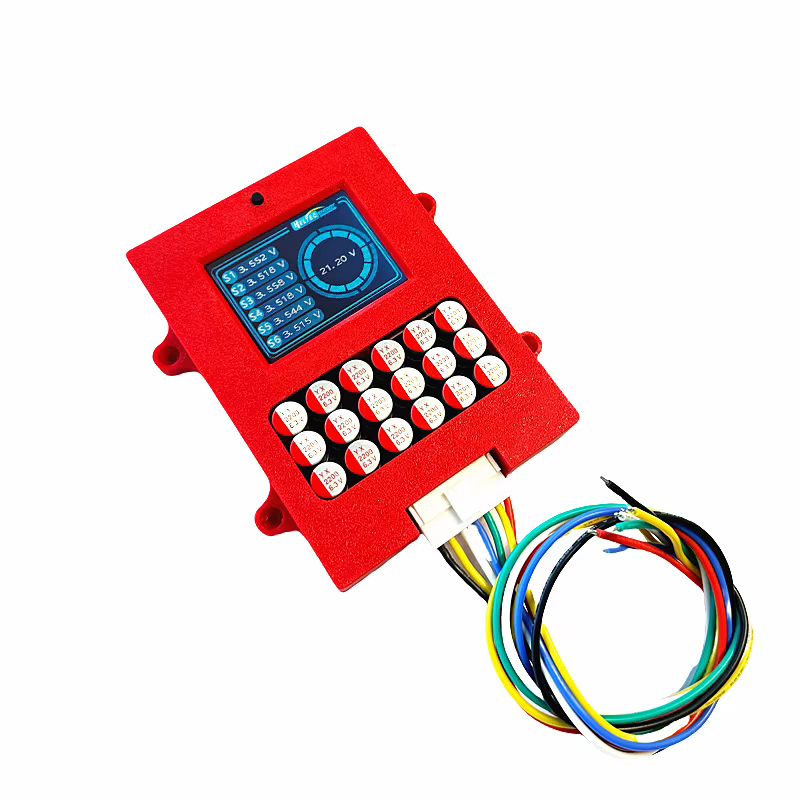

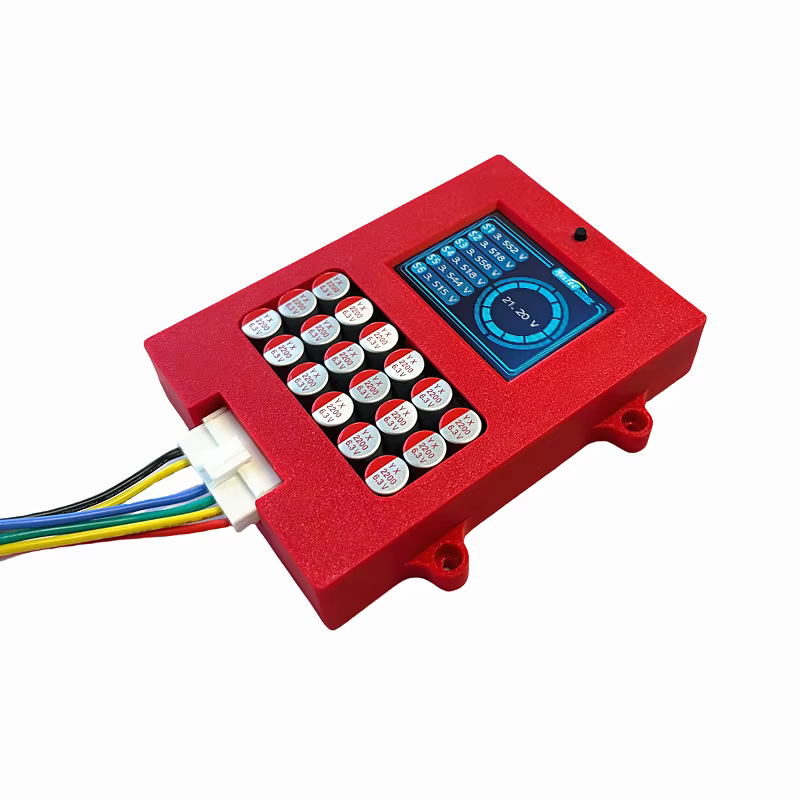

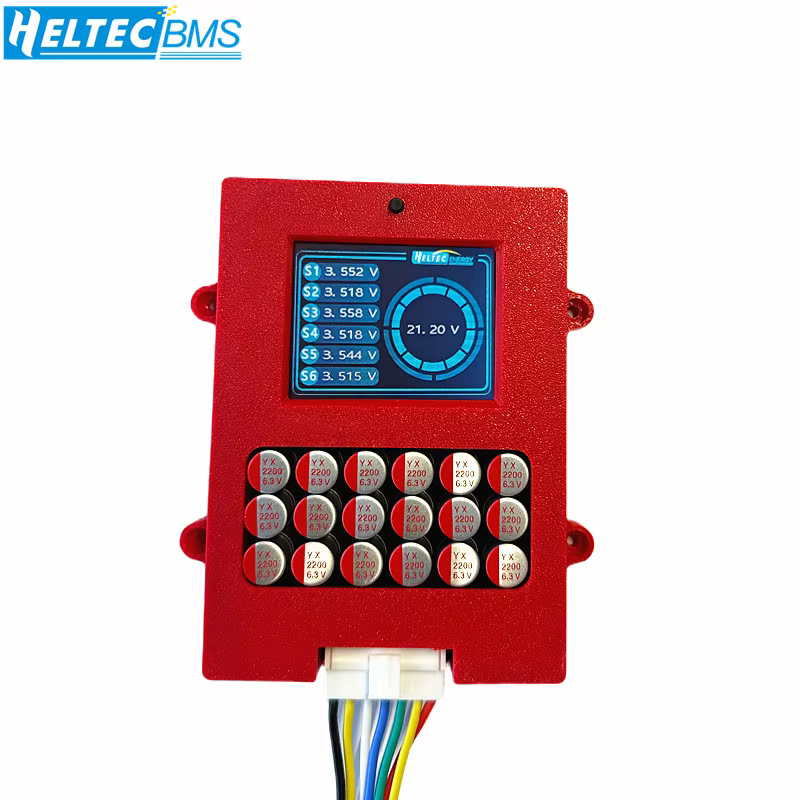

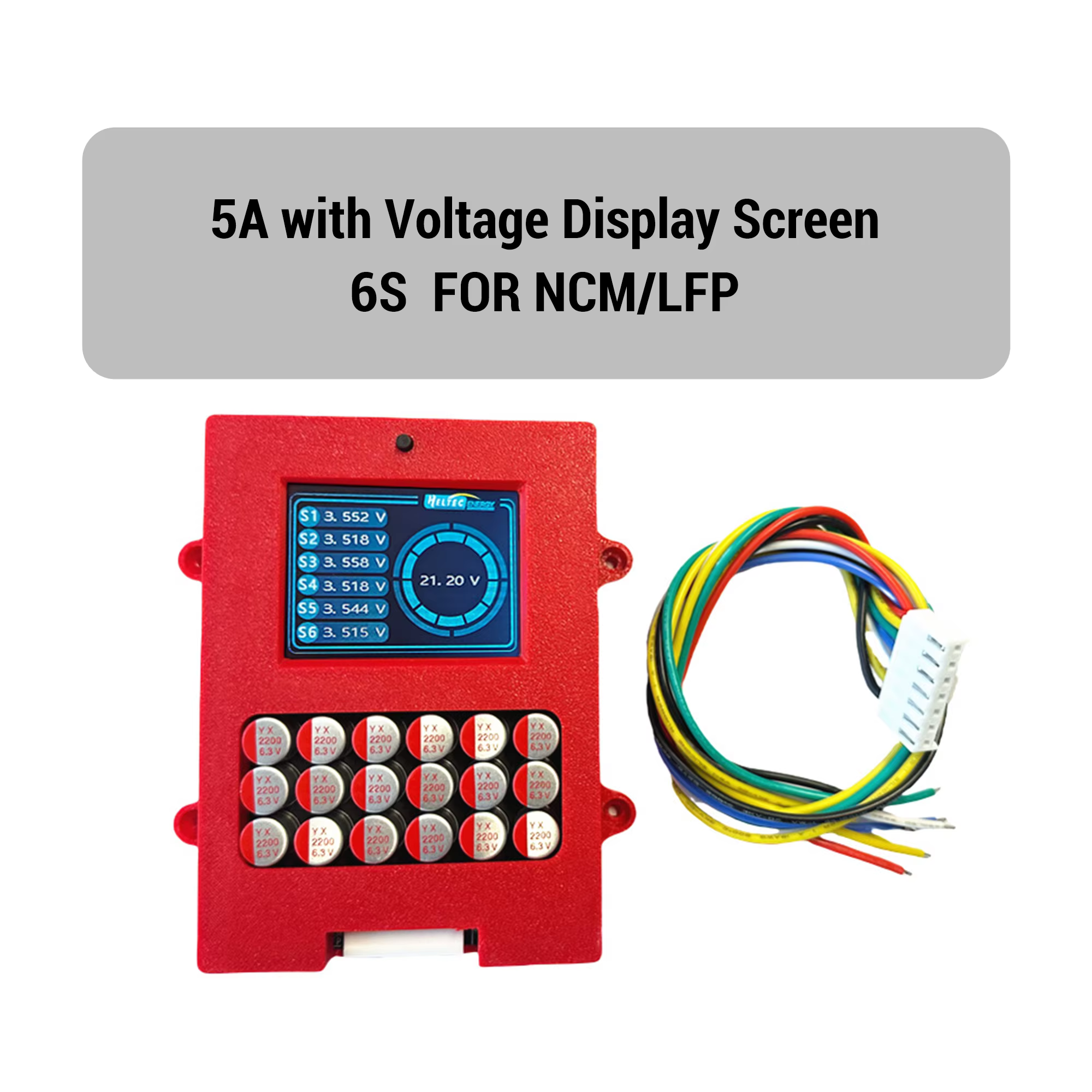

Balanceador/Equalizador Ativo de Bateria Heltecbms 6S Lifepo4, Testador de Tensão para Baterias Lipo/LTO/Lítio Titanato com Display de Tensão

R$ 326,90

pagamento por Pix, aprovado na hora

Envio do Brasil · chega em 3 a 14 diasRastreio enviado por e-mail assim que o pedido sair.
Sem surpresaNada a pagar na entrega. O frete, grátis para boa parte do Brasil, é confirmado pelo seu CEP antes do pagamento.
7 dias para desistirDireito de arrependimento garantido. Como funciona

Detalhes do produto

Feture

Number of strings: 6S

Battery type: NCM/LFP/LTO

Single string voltage range: 1.0V-4.5V

Measurement accuracy: 0.5% / ±5mV

Technical indicators

Product model:DS1004/DS1004C

Applicable string number:6S

Applicable battery type:NCM/LFP/LTO

Operating voltage range:NCM/LFP: 2.7-4.2V LTO:1.8V-2.7V

Balance voltage accuracy:5mV (typical)

Balance mode: Active balance in which the entire battery group
participates in energy conversion at the same time.

Balance current: When the voltage difference is about 1V, the maximum balance current is 5A, and the balance current decreases as the voltage difference decreases. The minimum balance start voltage difference of the instrument is 0.01V

Undervoltage protection sleep voltage: NCM/LFP: 2.7V LTO:1.8V

Static working current :20mA

Working environment temperature: -10℃-60℃

External power: No external power supply is required, and the whole battery group is balanced by relying on the internal energy transfer of the battery.

Detail

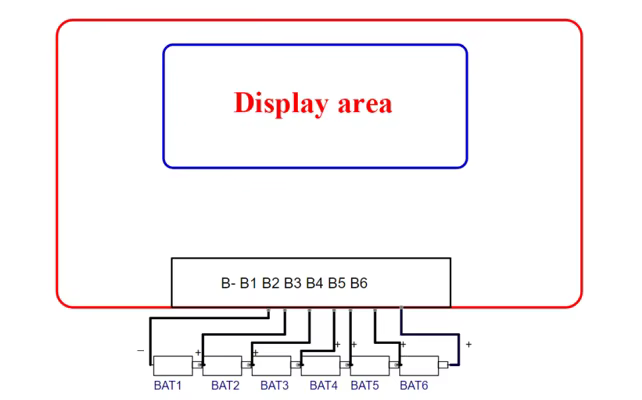

Connection

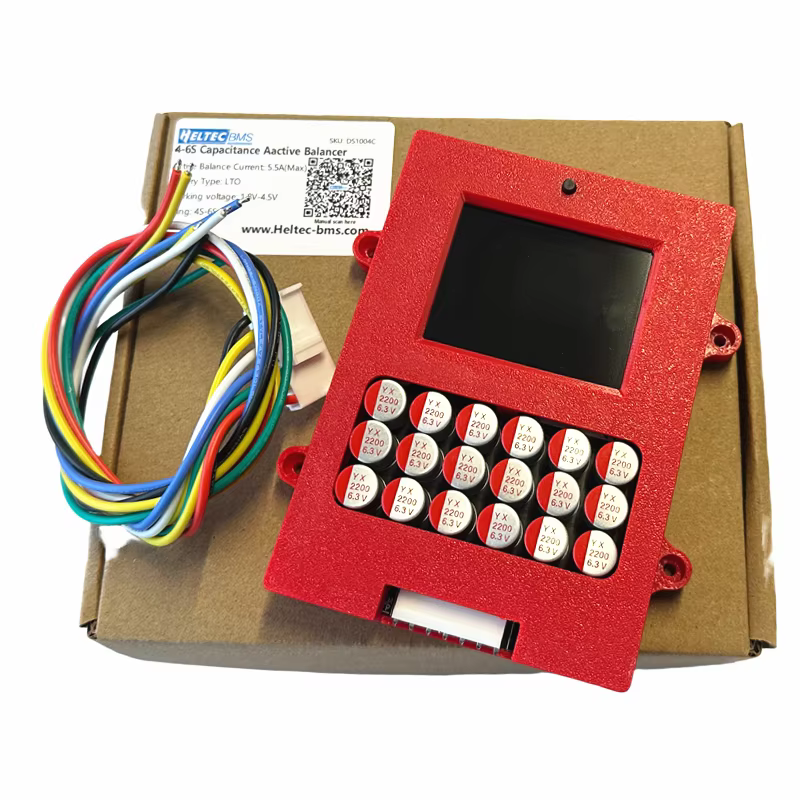

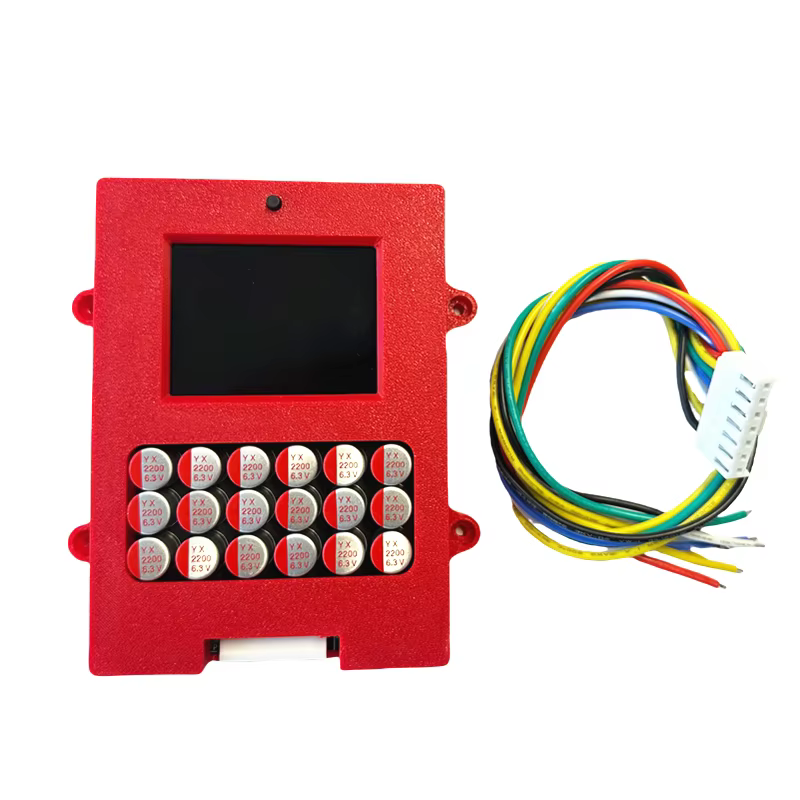

Package Include
