Rated charge current |
10A |
20A |
30A |
40A |
60A |
Input |

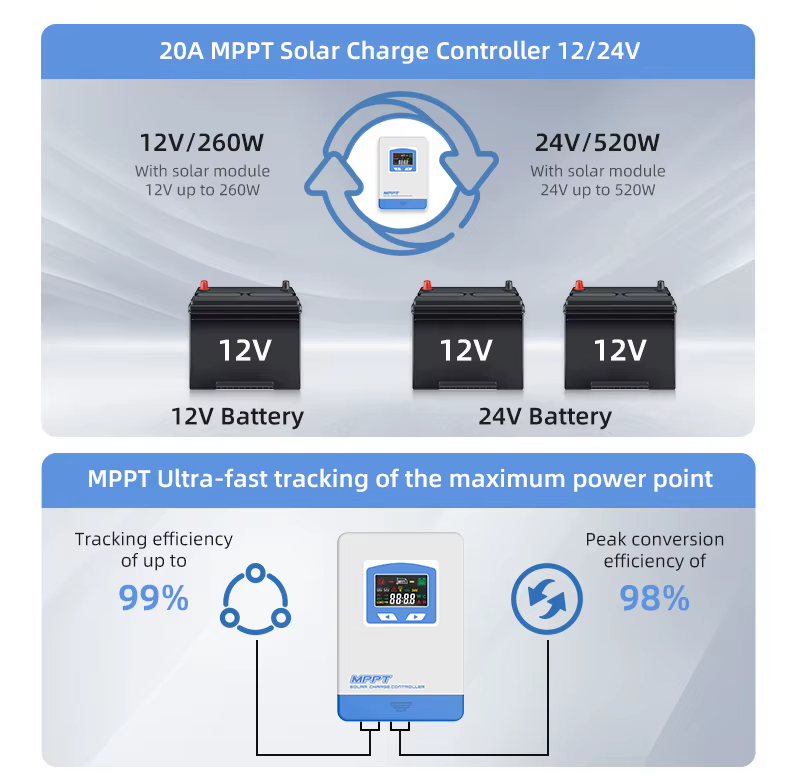

Maximum input power |
12V |
130W |
260W |
390W |
520W |
780W |
24V |
260W |
520W |
780W |
1040W |
1560W |
36V |
/ |
/ |
/ |
(1560W) |
(2340W) |
48V |
/ |
/ |
/ |
(2080W) |
(3120W) |
System rated voltage |
12/24V Auto. |
12V/24V(36/48V)Auto. |
Max open voltage of solar panel |
<60V (24V) |
<75V (24V) |
<100V(24V) <150V(48V) |
Output |
Rated Discharge Current |
10A |
20A |
20A |
20A |
30A |

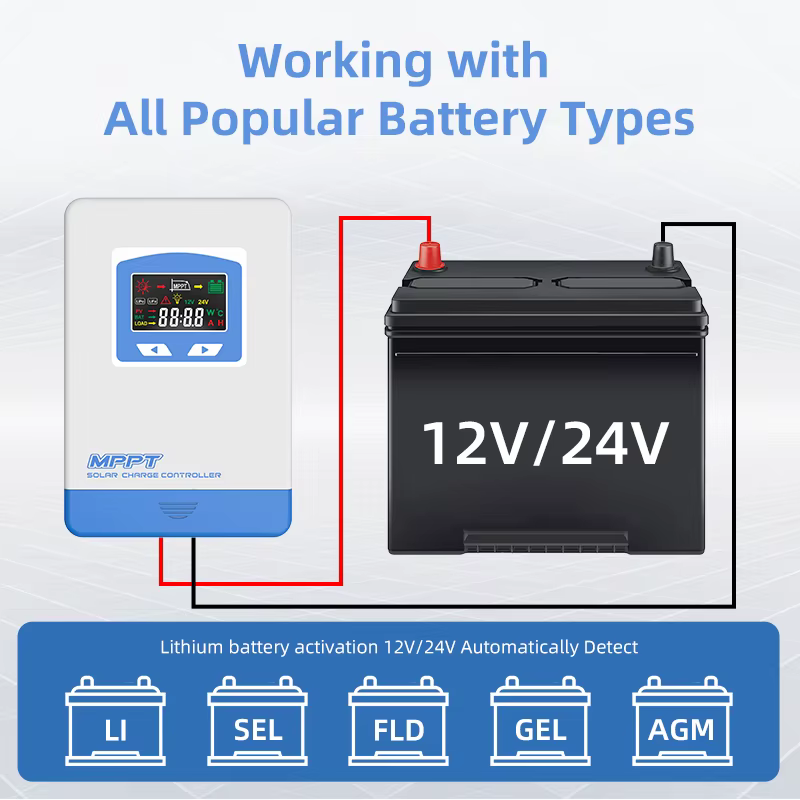

Battery type |
User default, Sealed, Flooded, GEL, LiFeP04, Li(NiCoMn)O2. |
Equalized charging voltage |
Maintenance-free lead-acid battery 14.6V, GEL：No;Lead-acid Flooded battery:14.8V |
Duration：2hours |
Absorption charging voltage |
Maintenance-free lead-acid battery：14.4V, GEL：14.2V ;Lead-acid Flooded battery: 14.6V |
Duration：2hours |
Float charging voltage |
Maintenance-free lead-acid battery,GEL, lead-acid Flooded battery: 13.8V |
LVR |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery:12.6V |
LVD |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery:10.8V |
Static loss |
24V(<50mA)/48V(35mA) |
HVD |
12V lead-acid battery |
24V lead-acid battery |
36V lead-acid battery |
48V lead-acid battery |
16V |
32V |
48V |
64V |

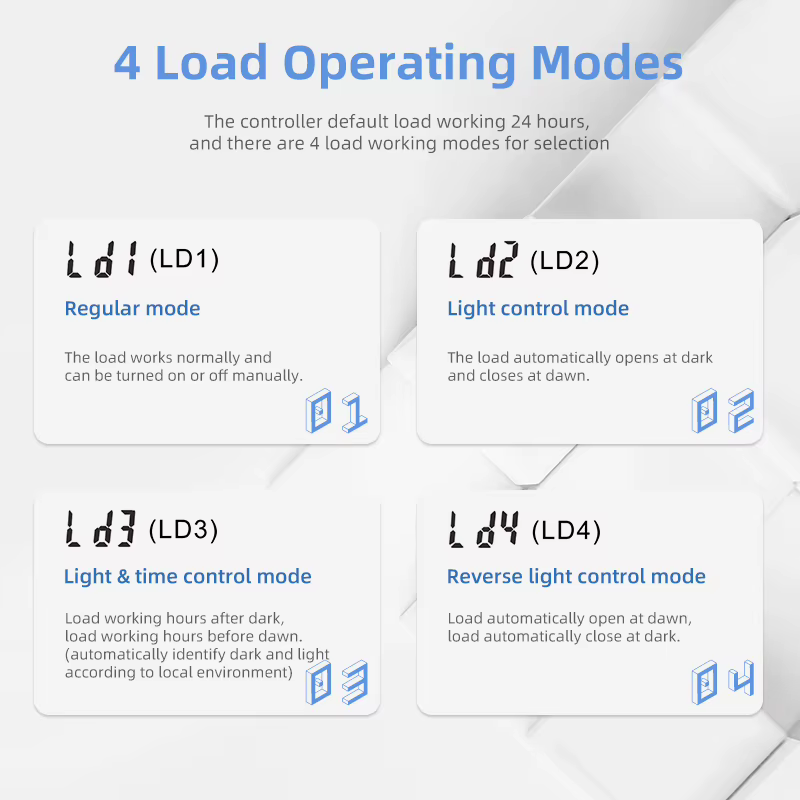

Light control voltage |
5V/10V/15V/20V |
Temperature compensation coefficient |
-4mV/°C/2V(25°C) |
Discharge loop voltage drop |
<=0.2V |
LCD temperature- |
-20°C~+70°C |
Operating temperature |
-20°C~+55°C |
Storage temperature |
-30~+80°C |
Working humidity |
<=90%,No condensation |
Protection class |
IP30 |
Grounded type |
Positive grounded |
The preceding parameters are 12V system and the temperature is 25°C.24V system 2x;36V system 3x;48V system 4x. |
